Sponge foam tear strength elongation tester servo system operation

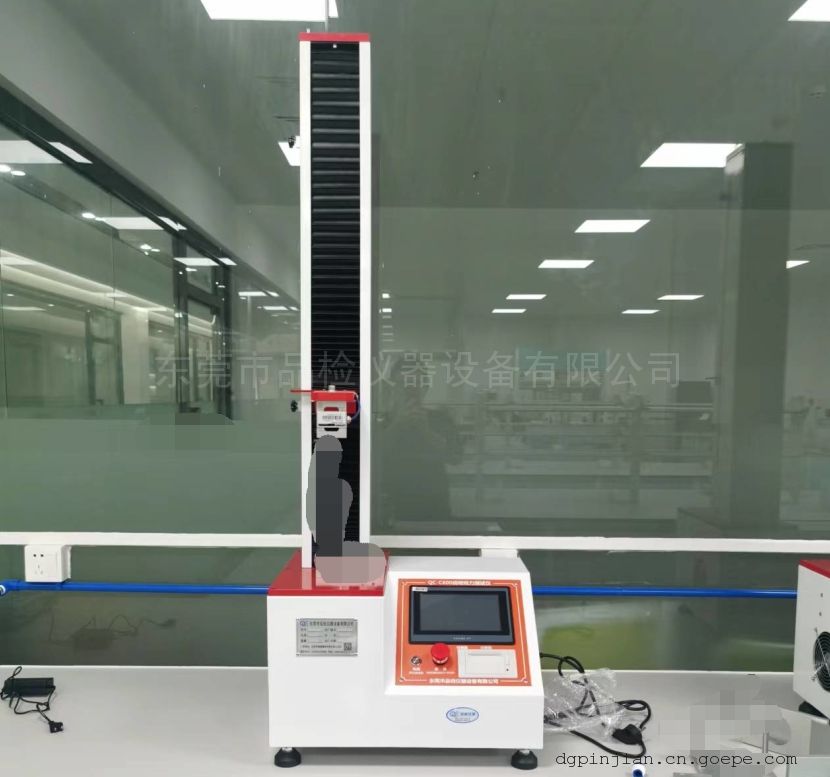

Sponge tear strength tester is a testing machine used to test tensile strength, elongation after fracture, tear strength, indentation ratio and indentation hardness of polyurethane, car seats, soft foam polymers and other sponge materials. It can meet a variety of national standards and standards, such as GB/T10807-2006, ASTM D3574, ASTM D3574, GB/T6344-1996, GB/T10808-2006, ISO8067:1989 and so on.

Sponge tear strength tester is usually composed of frame, tensile device, tear device, measuring device, data processing device, etc. During testing, the sponge material to be tested is placed on a testing machine, tearing behavior in actual use is simulated by a stretching device and a tearing device, tensile force and tearing degree are recorded by a measuring device, and performance indexes such as tearing strength of the sponge material are calculated by a data processing device.

When using the sponge tear strength tester for testing, the following points need to be noted:

1. The tested materials shall comply with relevant national standards and standards to ensure the accuracy of test results.

2. When installing and debugging the tester, it should be operated according to the requirements of the manual to avoid damage or error caused by improper operation.

3. During the test, the tester should be kept clean and dry to avoid affecting the test results.

4. During use, regular inspection and maintenance should be carried out to ensure the normal operation and service life of the tester.

Sponge foam tear strength and elongation testing machine equipment characteristics:

1. High degree of automation: The equipment is usually controlled by a microprocessor and can automatically complete the test process, including controlling the stretching and tearing of the sponge material.

2. High precision: The equipment uses high-precision measuring devices, which can accurately measure the tensile force and tear degree of sponge materials, so as to obtain accurate test results.

3. Wide range of applications: This equipment can be used to test the tear strength of polyurethane, car seats, soft foam polymers and other sponge materials to meet the needs of a variety of industries.

4. Easy to operate: The device uses touch screen technology, users can complete the test process through simple operations, and can also set parameters and query data.

5. Safety protection: The equipment has safety protection devices, such as limit protection and overload protection, to protect the safety of the test sample and the equipment itself.

6. Powerful data processing function: The equipment can save multiple sets of test data, and has data processing function, which can calculate the tear strength and other performance indicators of sponge materials, which is convenient for users to analyze and compare.

Technical parameters of foam tear strength and elongation tester:

1. Model: QC-600A Brand: Inspection

2. Load accuracy class: accuracy class is 0.5 or 1.

3. Load range: 2000N

4. Effective force range: 100%.

5. Test force resolution: 0.001N.

6. Elongation range: 0-400%.

7. Sponge tensile test space: 800 mm.

8. Test speed: 0.1~500mm/min(arbitrary adjustment),

9. Collection induction mode: force sensor for data acquisition.

10. Control system: digital AC servo motor plus servo controller for system control.

11. Software measurement and control system: full digital closed-loop control system for measurement and control, can achieve constant stress, constant strain, constant displacement, test functions.

12. Test bench lifting device: Most test machines have fast/slow speed control, which can be adjusted.

13. Test bench safety protection device: safety protection device with software automatic diagnosis and electronic limit function.

14. Test bench return: can automatically return to the initial position after the test.

15. Overload protection: automatic protection function when the maximum load exceeds 10%.

16. Power: 750W.

17. Weight: 150kg.

Use method of foam tear strength and elongation tester

1. Preparation: Prepare the test sample, ensure that the sample surface is clean and free of impurities, and adjust the shape and size of the sample according to the test requirements. At the same time, ensure that the tester is in a safe state and check whether the power connection is normal.

2. Installation of specimen: Place the specimen on the test platform of the tester, ensuring that the shape and size of the specimen conform to the test requirements.

3. Adjust the test parameters: according to the test requirements, adjust the test parameters of the tester, such as test speed, sample thickness, etc.

4. Start the test: Start the tester and test according to the set test parameters. During the test, you should pay close attention to the test situation, observe the tearing of the sample, and record the test data.

5. Data processing: According to the test data, calculate the tear strength and other performance indicators of sponge materials, and carry out data processing and analysis.

6. Cleaning and maintenance: After the test, shut down the tester, and do a good job of cleaning and maintenance to keep the tester clean and tidy.

It should be noted that the specific operation method may vary according to different manufacturers and models. It is recommended to read the instructions carefully or contact the seller for detailed information before use. At the same time, the operation should be carried out in strict accordance with the operating procedures to avoid safety accidents.
