Product DescriptionCompany Info.<>
- Model:
- QC-611
- Processing customization:
- Yes
- Measuring range:
- 0.1-10 KN
- Types:
- Universal
- Measurement accuracy:
- 0.3%
- Maximum load:
- 10/20/30/50/100 KN
- Stretch space:
- 800 mm
- Stretching speed:
- 0.1-500 mm/min

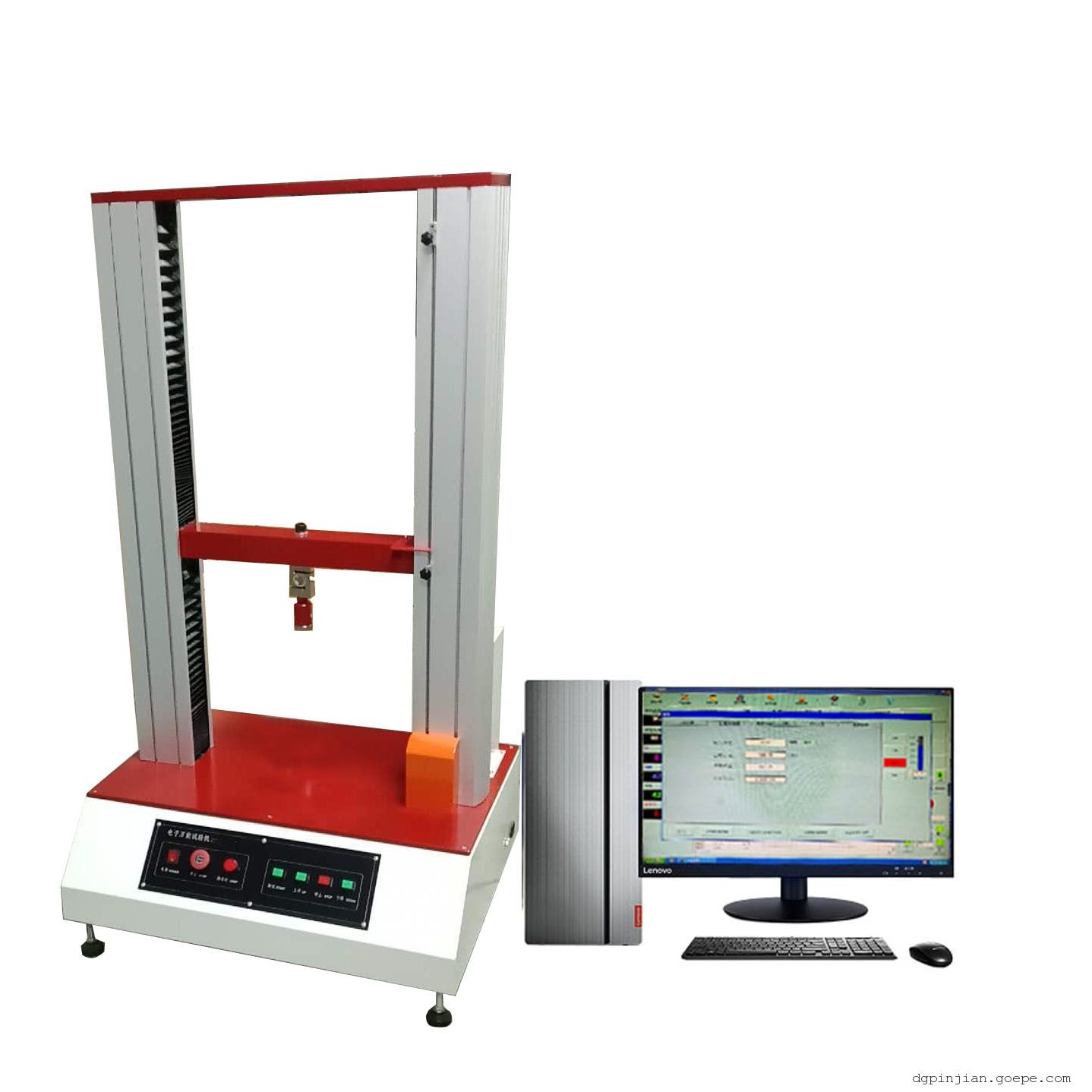

A. Metal, plastic, rubber, composite tensile strength tensile strength and deformation rate tester brief introduction:
Tensile strength, breaking force and deformation rate testing machine is a kind of precision equipment specially used to test the mechanical properties of materials under tensile load. The equipment measures and records the response of the material at different stages by applying gradually increasing tensile force, so as to obtain key parameters such as tensile strength, tensile force and deformation rate of the material.
Tensile strength, that is, the maximum tensile force that a material can withstand during stretching, reflects the ability of a material to resist fracture. Tensile force refers to the tensile force value when the material reaches the breaking point in the tensile process, which is directly related to the durability and safety of the material in practical application. Deformation rate, which reflects the degree of shape change of materials under external force, is an important index to evaluate the elasticity and shape stability of materials.
This tester is widely used in mechanical properties testing of various materials, including but not limited to metals, plastics, rubber, composites, etc. By testing tensile strength, tensile strength and deformation rate of these materials, powerful data support can be provided for material selection, product design, production process optimization and quality control.
In addition, this kind of testing machine usually has a high level of automation and intelligence, can accurately control the magnitude and speed of tensile force, record and display test data in real time, and improve test efficiency and accuracy. At the same time, the equipment is also equipped with a variety of safety protection measures to ensure the safety of operators during the test process.
When using tensile strength, tensile strength and deformation rate testing machine, it is necessary to follow certain operating procedures and precautions, such as correct installation of samples, setting appropriate test parameters, keeping the equipment clean and maintained, etc., to ensure the accuracy of test results and the normal operation of the equipment.
。Print out the test date, time and display value set by the monitor. This machine can be equipped with various fixtures and accessories of large deformation test device, or assembled according to customer requirements (contract). Design standards:ASTM D903, GB/T2790/2791/2792, CNS-11888, JIS K6854, PSTC-7
Second, metal, plastic, rubber, composite tensile strength tensile strength and deformation rate testing machine technical parameters:
Capacity : 100, 200, 500kg, 1T, 2T/3T/5T (optional)
Selection capacity: generally 3~10 times the maximum force value of the specimen destruction
Unit selection: g, kg, N, KN, LB (international standard system, metric system, imperial system three kinds, automatic switch use)
Display device: full computer control (can arbitrarily create customer needs report data)
Load resolution: 1/100,000(capacity≤ 1T: 1/250,000)
Load accuracy: ≤0.5%(capacity≤ 1T:≤ 0.25%)
* Large stroke: 1000mm (excluding fixture)
Test speed: 5~300mm/min (computer arbitrary adjustment)
Appearance size: (L× W× H) 985× 510×1600mm
Power system: Panasonic servo motor + Panasonic servo driver
Transmission mode: ball screw +Liming reducer + synchronous belt drive
Power supply: 1<$,220V/50Hz
Delivery : one set of fixture
III. Specifications of tensile strength and deformation rate testing machine for metals, plastics, rubber and composites
A: Power system: Panasonic servo motor + Panasonic servo driver +ball screw + Liming reducer + synchronous belt drive
B: Control system:computer servo system, automatic return to origin after test, automatic and manual data storage
C: Data transmission mode: RS232transmission
D: Computer servo system: desktop servo computer tensile testing machine dedicated system
E: Display mode: Windows interface display
F: Convenient full range first gear and precision full range six gear power linear double correction system
G: Windowsinterface test software can realize fixed speed, positioning shift, fixed load, fixed force, fixed time, breakpoint proportion, multi-stage control mode, can meet different test requirements
H: Full displacement: encoder: 2500P/R, improve accuracy by 4 times
I: Displacement resolution:0.01mm
J: Safety device: overload emergency stop device, upper and lower stroke limit device, leakage automatic power off system, automatic power off stop function
IV. Introduction to the software function of tensile strength and deformation rate tester for metals, plastics, rubber and composites
A: Test standard modular function: provide users with the required application of the test standard settings, covering GB, ASTM, DIN, JIS, BS…, and other test standard specifications
B: Sample data: gauge length, width, thickness, radius, area, etc.
C: Double report editing: completely open to users to edit reports, for testers to choose their preferred report format
D: The length and strength unit display of the electronic universal material testing machine adopts dynamic exchange mode.
E: Circular curve scale automatic * optimization, can make the circle with * optimal scale display, and can implement circular dynamic switching in the test, with force—— displacement, force—— time, displacement—— time, stress—— strain
F: Automatic save at the end of the test, manual archiving, automatic display after the test * large strength, upper and lower yield strength, compressive strength, tensile strength, 100%tensile strength, 300% tensile strength, elastic modulus, elongation, peeling interval * large value, * small value, average value, etc.
G: Multiple languages randomly switched: Simplified Chinese, Traditional Chinese,- Name（chinese）
